Alltooetools Engine Injector Removal Puller Kit Car Repair Garage Installer Tools Compatible with Audi Skoda

Description

SAFELY REMOVE INJECTORS: Get the job done right with the Slide Hammer Adapter Injector Puller Tool 18-Piece Set; This injector installer & puller set allows you to remove, install, and service FSI or TSI injector reseals.

FITS YOUR VEHICLE: Fuel injector tool for petrol injectors found in gasoline direct injection vehicles with 1.4, 1.6, 1.8, 2.0, 2.7, V6, 3.0, V6, 3.2 V6, 3.6 V6, and 4.2 V8 FSI engines; Is compatible with Seat, Skoda, and similar European vehicles engines; Not intended for diesel engines.

EASY TO USE: Select a puller attachment, slide it onto the injector, use puller screw or slide hammer to safely remove injector; Once injector is pulled, remove old seal using a small pick or flathead screwdriver (not included) carefully to not damage injector groove surface; To fit the new seal, place included assembly cone on tip of the injector and slide new seal onto assembly cone, use included assembly sleeve to slide seal onto injector; Additional tools included for cleaning and installing.

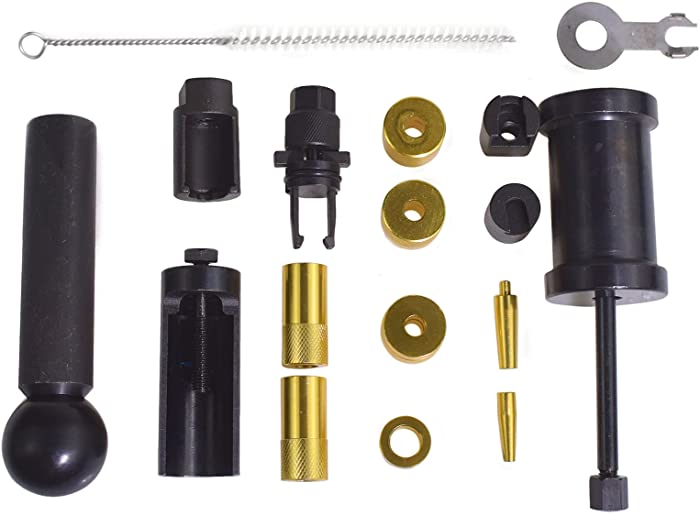

PACKAGE CONTENTS:
A: Ball type insertion adaptor.
B: Injector puller large cup type for FSI type injectors.23mm x 76mm.
C: Injector puller small cup type for FSI type injectors.14mm x 40mm.
D: Injector puller two leg (thin) for FSI type injectors.19mm x 20mm.
E: Two cylindrical adaptors. 12mm I.D. 13mm I.D. 40mm long.
F: Two tapered cone adaptors. 27mm x 4mm taper, 35mm x 7mm taper.

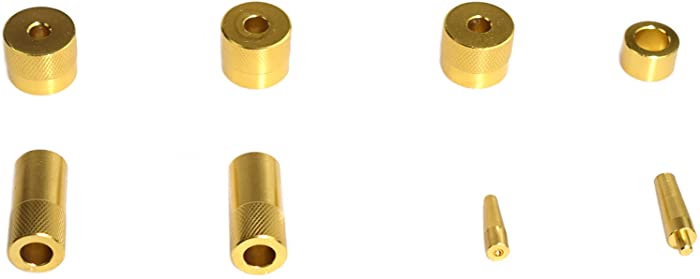

G: Three knurled stepped adaptors 24mm.
H: One threaded cup type pulling adaptor. 15mm x 10mm.
I: One threaded cup type pulling adaptor. 10mm x 8mm.
J: One spacer bush 19mm O.D x 12mm I.D. x 12mm long.
K: Slide hammer puller
L: Disconnect key 9.5mm.

Features & details

Features

• 【Material】Manufactured from high quality steel for strength and Durability. Fuel injector puller have Knurled rings for use in Oily and Greasy conditions.
• 【Applicable】Designed for the removal of FSI type injectors compatible with Volkswagen, compatible with Seat, compatible with Skoda & other European vehicles.
• 【Suitable】Compatible with Volkswagen, compatible with Seat, compatible with Skoda & other European vehicles, covering 1.4, 1.6, 1.8, 2.0, 2.7, V6, 3.0, V6, 3.2 V6, 3.6 V6 and 4.2 V8 FSI engines.

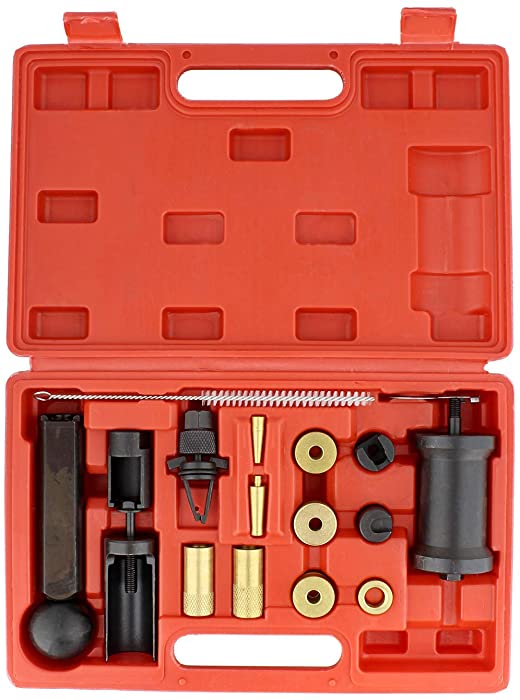

• 【Packing】 Comes within a blow moulded case.

Product information

Additional Information

• ASIN: B07JNML3NL
• Customer Reviews: 4.6 out of 5 stars 158Reviews
• Best Sellers Rank: #44,580 in Automotive (See Top 100 in Automotive) #33 in Puller Sets
• Date First Available: April 1, 2014
