Draft Gauge for Oil Furnace, Coal Stove, Pellet Stove, Kerosene Stove. Hand-Held. Direct-Reading Differential Pressure 0.005-1.0 inch W.C. and Velocity 260-4000 FPM. Dwyer 460-DRAFT.

Description

Simple and quick. The 460 Air Meter is a popular, affordable DRAFT GAUGE used to fine-tune the combustion efficiency of Oil Furnaces, Coal Stoves, Pellet Stoves, and Kerosene Stoves. Use to set the barometric damper on oil furnaces by measuring the draft between the furnace and the barometric regulator. Measure flue draft in wood-burning stoves and appliances. Measure static pressure in furnace plenums. The 460 Air Meter Kit is also an excellent tool for servicing air conditioning, heating and ventilating equipment. The direct-reading velocity and static pressure scales — both low and high ranges — show supply and return grille velocities, furnace draft, pressure drop across filters, etc. The 460 gives consistent, accurate results with no tedious calibration. Rugged plastic for rough daily use. Dual velocity ranges read 260-1200 and 1000-4000 FPM; pressure ranges from .005-.09 and .05 -1.0 in w.c. The Dwyer 460 Air Meter Kit includes air meter, return and supply grille probes, angle connector, cleaning materials, instruction card, air velocity calculator, and carrying case.

Features & details

Features

• SIMPLE & QUICK: The 460 Air Meter is a popular, affordable DRAFT GAUGE for fine-tuning combustion efficiency of Oil Furnaces, Coal Stoves, Pellet Stoves, and Kerosene Stoves.

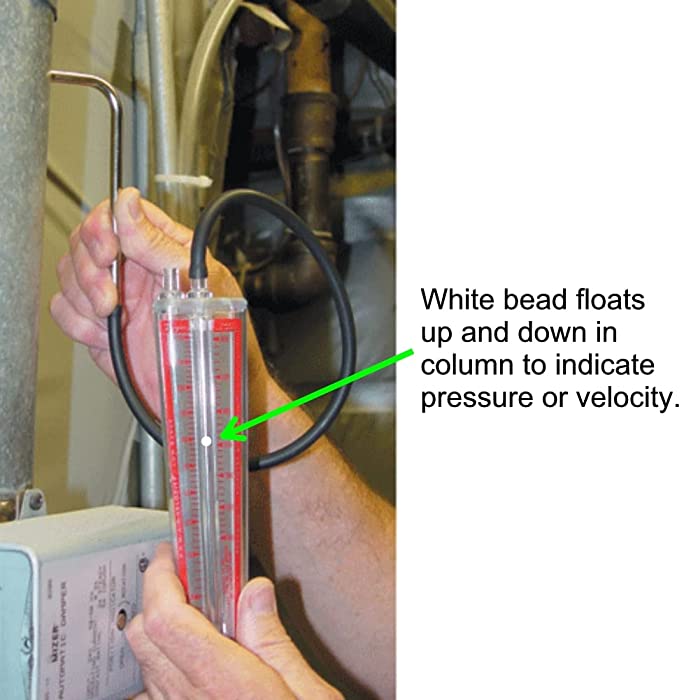

• DIRECT READING. NO BATTERIES: Use to set the barometric damper on oil furnaces by measuring the draft between the furnace and the barometric regulator. Measure flue draft in wood-burning stoves and appliances. Measure static pressure in furnace plenums.

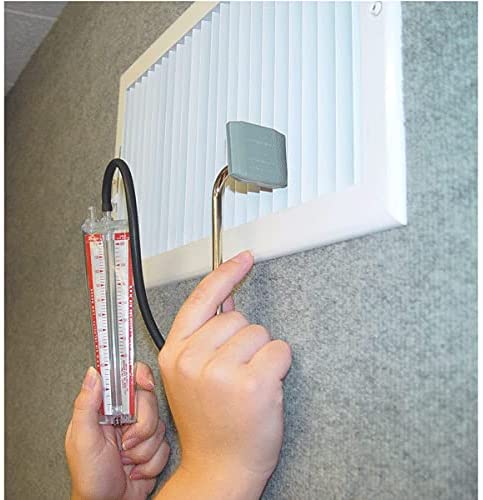

• VERSATILE HVAC TOOL: The 460 Air Meter Kit is an excellent tool for servicing air conditioning, heating and ventilating equipment. The direct-reading velocity and static pressure scales — both low and high ranges — show supply and return grille velocities, furnace draft, pressure drop across filters, etc.
• ACCURATE: The Dwyer 460 gives consistent, accurate results with no tedious calibration. Rugged plastic for rough daily use. Dual velocity ranges read 260-1200 and 1000-4000 FPM; pressure ranges from .005-.09 and .05 -1.0 in w.c.

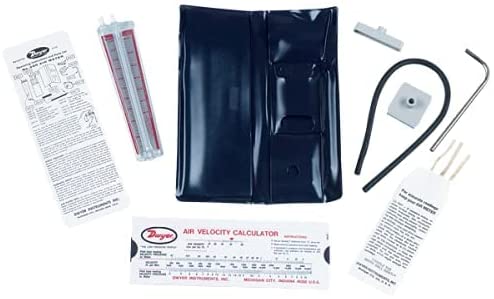

• IN THE BOX: The Dwyer 460 Air Meter Kit includes air meter, return and supply grille probes, angle connector, cleaning materials, instruction card, air velocity calculator, and carrying case.

Product information
