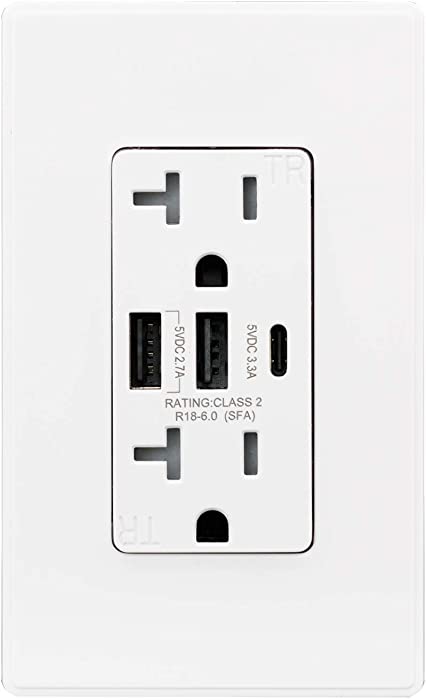

ELEGRP 30W 6.0 Amp 3-Port Type C USB Wall Outlet, Smart Chip High Speed Charging for iPhone, iPad, Samsung, Google, LG, HTC, Android Devices, Tablets and More, UL Listed, w/Wall Plate, 1 Pack, White

At the office, home or school, USB type C has arrived

You’ve probably noticed something strange about many of the latest phones, tablets and laptops: The familiar rectangular Type A USB ports are gone, replaced by smaller oblong connectors. USB type C has taken over at work, at home and at school.

While many iPhone and iPad models stick with Apple’s proprietary Lightning connector, USB type C is now part and parcel of most laptops, phones and tablets made today. Even the latest MacBooks and Chromebooks are part of the movement to USB type C.

What Is USB Type C?

USB type C is a relatively new connector for delivering data and power to and from computing devices. Because the USB type C plug is symmetrical, it can be inserted either way, eliminating the frustrations of earlier USB ports and putting it on a par with Apple’s reversible Lightning plug.

What's more, USB type C is closely linked to several powerful new technologies, including Thunderbolt and USB Power Delivery, that can change how we think about our gear and working in the office, on the road, or at home.

Unique 3 USB Ports

• Upgraded 3 USB ports for maximum usage for the family.
• Added a reversible Type C USB port for the increasingly popular electronic devices trend
• Rated Current 6.0A in total

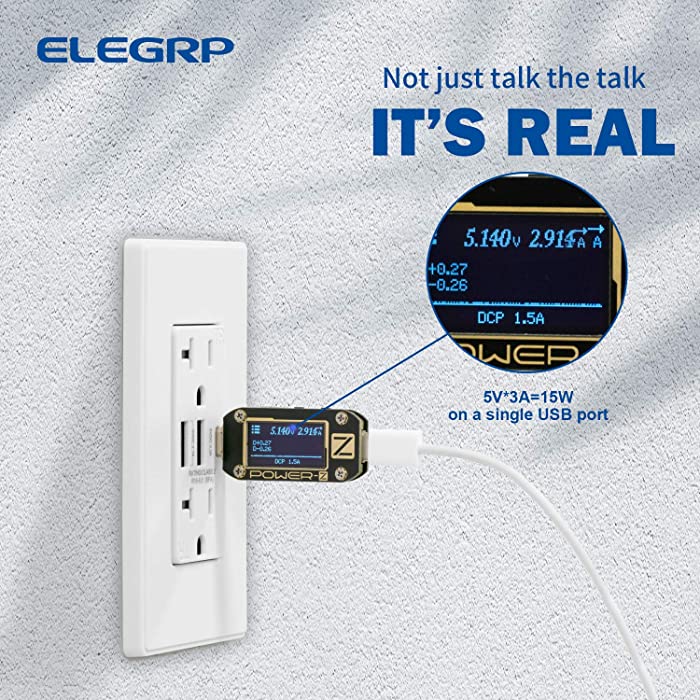

• Single USB Port up to 15W MAX, 30W in total
• The USB ports without data transfer capability

Multiple Protection Safer Charging

Built-in circuit protection system protects your device from various hazards

• Line Loss Compensation
• Backflow Protection
• Overheating Protection
• Overvoltage Protection
• Undervoltage Protection
• Overcurrent Protection
• Overload Protection
• Short Circuit Protection

6.0 Amps USB Output

This USB outlet offers a smarter way to charge than traditional AC power adapters. With a collective output of 6.0 amps, this USB outlet can fully charge your device at the fastest speed.

Elegant Matte Finish

Texture matte surface looks best with today's decors. Tough thermoplastic housing shrugs off impacts and scratches. Comes with a set of the matte screwless wall plate.

Smart System

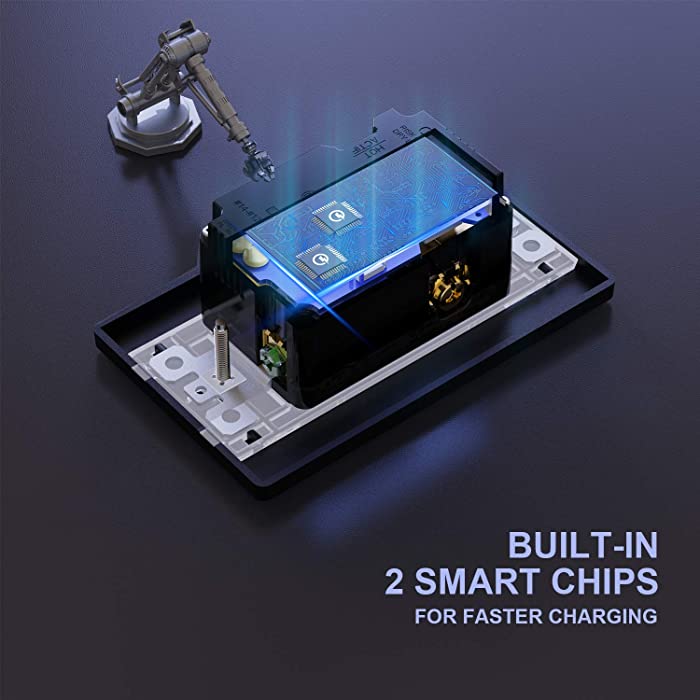

Built in 2 smart chips recognize the individual device‘s charging protocols and requirements to optimize charging of your electronic devices for fast and efficient charging of phones, tablets, gaming devices, e-readers and a host of other electronic devices.

Universal Compatibility

• - Type A and Type C USB charging ports feature a total output of 5V DC, 6.0Amp, 30W (Max 3.0A 15W standalone).
• - Compatible with all kinds of USB devices with multiple charging protocols including Apple Protocols, Samsung Protocols and Standard BC1.2.
• - Meets a variety of charging requirements to make sure your devices are charged at blazing-fast speeds.

PRODUCT SPECIFICATION

Receptacle Rating: 20A, 125V

Receptacle Type: NEMA 5-20R

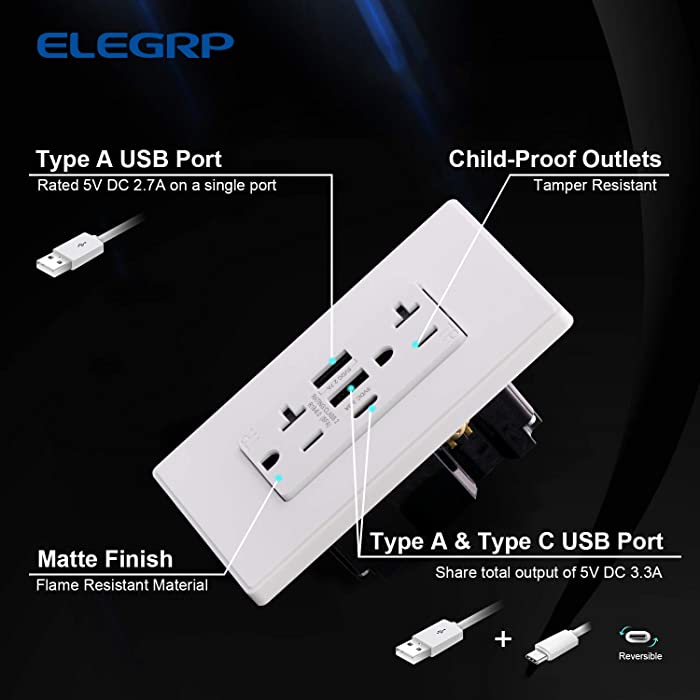

USB Rating: Type A1: 5VDC 2.7A

Type A2+Type C: 5VDC 3.3A

Wire Guage: #14 - #12 AWG

Wiring Type: Back Wire Only

Operating Temperature: -4 to 104℉ (-20℃ to 40℃)

Product Size: 4.17x1.69x1.69" (106x43x43mm)

Remark: Screwless wall plate is included

	Dual Type A (4.0A)	Type A + Type C (Quick Charge 36W)	Type A + Type C (5.0A)	Dual Type A + Type C (6.0A)	Type A + Dual Type C (6.0A)
Color	Glossy White	Matte White	Matte White	Matte White	Matte White
Rating	5V 4.0A in Total	Type A: QC3.0 18W Type C: PD2.0+QC3.0 18W	5V 5.0A in Total	Type A1: 5V 2.7A, Type A2+Type C: 5V 3.3A	Type C1+Type A: 5V 3.0A, Type C2: 5V 3.0A
Wiring Type	Back Wire or Side Wire	Back Wire Only	Back Wire Only	Back Wire Only	Back Wire Only
Package Quantity	1 Pack, 2 Pack, 6 Pack, 10 Pack	1 Pack, 2 Pack	1 Pack, 2 Pack	1 Pack, 2 Pack, 6 Pack	1 Pack, 2 Pack, 6 Pack

Product information

Videos

1. For this product



   2:41

   ELEGRP | How to install USB outlet

   ELE GROUP

2. For this product



   0:11

   Customer Review:

   Package and item damage

   Jose Cortazar

3. For related products



   1:56

   Leviton - Power Delivery_V5

   Merchant Video

4. For related products



   1:28

   Nice USB & USB-C Wall Charger - Fast Charges My Phone

   No Shame Income

5. For related products



   1:41

   How to installation

   Electric4Pro

6. For related products



   0:34

   TOPGREENER TU21558AC 5.8A Ultra-High-Speed USB Type C/A Wall Outlet Charger, 15A TR Receptacle, C...

   Merchant Video

7. For related products



   0:44

   E Etermtt 15-Amp 30W Type-C USB Outlet PD 3.0

   JYTon

Share this video with friends

Related posts

1. TOPGREENER + Follow TOPGREENER TU21558AC 5.8A Ultra-High-Speed USB Type C/A Wall Outlet Charger, 15A TR Receptacle, Compatible with iPhone SE/11/XS/XR/X, Samsung Galaxy S20/S10/S9, LG, HTC & More

   See more
2. Mifaso + Follow USB Wall Charger Surge Protector, 5 Outlet Extender with 4 USB Charging Ports ( 1 USB C Outlet) 3 Sided 1800J Power Strip Multi Plug Outlets Wall Adapter Spaced for Home Travel Office

   See more
3. SZICT + Follow SZICT 36W PD Quick Charge Outlet (Support 18W Fast Charing for iPhone 12) with Type-C Power Delivery Port, Tamper-Resistant Outlet for iphone, iPad and Samsung, UL Listed, White 1 Pack

   See more
4. ECHOGEAR + Follow With the real slim surge protector please stand up? Well, it doesn't have legs but this surge protector is as skinny as it gets. Not to mention it can power 3 AC devices and 2 USB devices at the same time. Grab like 10 of them for your house,.

   See more
5. AllChinaFiber + Follow 😮😮How amazing❗MAX 20W charges too fast!

   See more
6. theOUTlet + Follow No need to unplug your appliances! Slide a button & double your outlets so they're all working together!

   See more
7. Maxxima LED Lighting + Follow Update your outlets to have USB ports to charge your devices.

   See more
8. Cable Matters + Follow Tamper Resistant Duplex AC Outlet with USB Charging and Faceplate is the ideal solution for creating a centralized charging station at any wall receptacle location in the home or office. Charge your phone or tablet with either a USB charging cable or a wall adapter.

   See more
9. ELEGRP | ELE GROUP + Follow With ELEGRP quick charge receptacles,you can directly use the USB ports to quickly charge Iphone,Ipad,headsets and digital cameras, etc.

   See more
10. AllEasy + Follow USB Wall Outlet

    See more

---

Customer reviews

4.7 out of 54.7 out of 51,887 global ratings

---

Reviews with images

See more

---

Top reviews from the United States

Gordon Mcconnell3.0 out of 5 starsVerified Purchase Nice enough outlet, after you FINALLY get a plug to go in... Reviewed in the United States on May 25, 2021Item Package Quantity: 1Size: 20 Amp Outlet Incredibly hard to get a plug into the (regular 110v, not USB) part of the outlet to begin with. At first, I thought I had a defective outlet - so I tried another couple, and they were all the same. After I finally forced a plug in so hard that I thought... See more Incredibly hard to get a plug into the (regular 110v, not USB) part of the outlet to begin with. At first, I thought I had a defective outlet - so I tried another couple, and they were all the same.

After I finally forced a plug in so hard that I thought something would break, I got it to work. Second time inserting was slightly easier. After a dozen or so iterations, it behaves normally. Very odd. The USB outlets are great, and do provide high output - but unfortunately the difficulty of inserting 110v plugs initially is a bit off-putting. 13 people found this helpful Helpful Report Xavier P.5.0 out of 5 starsVerified Purchase Works as expected and charges items efficiently Reviewed in the United States on January 3, 2021Item Package Quantity: 1Size: 15 Amp Outlet Good product. I like that when I removed the OLD outlet, and I noticed that I had two black wires and two white wires, rather that the traditional one and one. This new outlet had the compartments to attach the two black wires and two white wires. Sometimes outlets only... See more Good product. I like that when I removed the OLD outlet, and I noticed that I had two black wires and two white wires, rather that the traditional one and one. This new outlet had the compartments to attach the two black wires and two white wires. Sometimes outlets only have screws/sockets for one black wire and one white wire....but this wasn''t the case, so it made it VERY easy to transfer all the wires over. One thing to be aware of is when plugging in items into the three prongs, it''s a little tough sometimes to put the three prong items in because of the child tamper/resistance feature. Otherwise, very satisficed with it, as it charges my accessories with easy and no more looking for those additional miniature wall plugs to charge my accessories.

Lastly...I like installing these where there are counters right BELOW or right ABOVE the outlets, so if I ever need to quickly charge something, I have the convenience of having a place to easy charge my items. 14 people found this helpful Helpful Report Handi3.0 out of 5 starsVerified Purchase Decent Outlet for the Price Reviewed in the United States on October 20, 2020Item Package Quantity: 1Size: 20 Amp Outlet A decent outlet for the price. However, it runs very hot (50C over ambient) at the claimed load of 6A. I don''t see how it is UL certified! 21 people found this helpful Helpful Report Lewis F. Franklin5.0 out of 5 starsVerified Purchase Good charging option Reviewed in the United States on December 18, 2020Item Package Quantity: 1Size: 15 Amp Outlet Got this outlet because the new Apple MagSafe Duo Charger. It requires 30W to be able to charge an iPhone 12 ProMax and an Apple watch at the same time. So since the charger does not come with a charger you need to get creative. So far this seems to be working fine I am... See more Got this outlet because the new Apple MagSafe Duo Charger. It requires 30W to be able to charge an iPhone 12 ProMax and an Apple watch at the same time. So since the charger does not come with a charger you need to get creative. So far this seems to be working fine I am using an Apple brand lighting cord with USB C on one end.
I wired it in myself, note that it does not have push in wire connectors and only has one black and one white connecting house wiring screw. (oh and a ground) 14 people found this helpful Helpful Report Julian3.0 out of 5 starsVerified Purchase Not Quite as Advertised Reviewed in the United States on October 24, 2021Item Package Quantity: 1Size: 15 Amp Outlet

I bought this to replace the outlet at what has become the charging station in my kitchen. I found that the hardest part of the installation is getting the wires on the lugs. One of the videos I watched shows this being installed in parallel--two wires on each lug. One... See more I bought this to replace the outlet at what has become the charging station in my kitchen. I found that the hardest part of the installation is getting the wires on the lugs. One of the videos I watched shows this being installed in parallel--two wires on each lug. One wire is not very easy; so I would imagine two increases the difficulty. The wallboard cutout around my receptacle is oversized by about 1/2". The wall plate that comes with this outlet does not allow any room for that. Nowhere in the description do they tell you the actual dimensions of the cover plate. I am guessing that it is supposed to be a standard size. But I put it up against an existing standard plate and it is a fraction smaller. (See third and fourth pictures.) It appears that the cover plate is sized to match the dimensions of the receptacle box inside the wall. So if your receptacle opening is oversized by 1/8", you will likely see a gap at the edge. I finalized my installation by using a Leviton R62-0PJ26-00W from The Home Depot. It is very similar to Leviton 80601-W from Amazon. Both are midsize GFCI cover plates. The second picture is the included cover plate installed. The first picture is the suggested cover plate.

The description implies that the USB ports are fast charging. They are not. My fast charger charges my phone at about 1% per minute. This outlet charges my phone at 1% per 1-1/2 minutes. Where it would take my phone 40 minutes to reach a full charge from 60% battery life with a fast charger. It takes 65 minutes to reach a full charge from 60% battery life with this outlet.

Things to Note:
This outlet itself does not offer GFCI protection. So I would advise you not to use this to replace a GFCI outlet at the head of the line. My charging station is at the end of the line plus the entire circuit is on a GFCI breaker; so I have no concerns. I considered getting a larger cover plate like the one that came with the outlet but I could not stop staring at it. It just does not look right.

I deducted one star for a generally useless cover plate. I deducted one star for falling short of the expected charging capacity. I will likely get a different brand for any future replacements. I will check it in one month and decide whether I should return it. Then again, maybe I will do so next week. 9 people found this helpful Helpful Report k3wl6uy5.0 out of 5 starsVerified Purchase Y''all... These are sexy. Reviewed in the United States on April 20, 2021Item Package Quantity: 1Size: 15 Amp Outlet Seriously, I can''t believe I am at the age where I get excited about things like this... But seriously, these are the BEST outlets I''ve purchased in my LIFE! They work great, and having options for how I want to charge my items or plug things in is so amazing. Plus,... See more Seriously, I can''t believe I am at the age where I get excited about things like this... But seriously, these are the BEST outlets I''ve purchased in my LIFE! They work great, and having options for how I want to charge my items or plug things in is so amazing. Plus, anyone that encounters these is always asking me where I got them and what brand they are. I Highly recommend replacing your outlets with these... I only purchased 3 for my office re-model, but I will be buying more soon to start changing out the rest of the house. HIGHLY recommend, these are great! 9 people found this helpful Helpful Report Andrew1.0 out of 5 starsVerified Purchase Does not work for Apple Homepod Mini Reviewed in the United States on July 7, 2021Item Package Quantity: 1Size: 15 Amp Outlet The product description says that it works for Apple products but when I plug my Apple Homepod Mini directly into the USB C port it starts to flash yellow, which means that the device is not getting enough power. The Homepod will work if you use the wall plug and... See more The product description says that it works for Apple products but when I plug my Apple Homepod Mini directly into the USB C port it starts to flash yellow, which means that the device is not getting enough power.

The Homepod will work if you use the wall plug and use that port but I bought these specifically to use for the homepod without the wall port. If this had been mentioned in the description, I would have have bought these or paid an electrician to install them in our home during our renovation. 11 people found this helpful Helpful Report Royce Remer5.0 out of 5 starsVerified Purchase Quick install, no fuss, nice faceplate Reviewed in the United States on November 6, 2020Item Package Quantity: 1Size: 15 Amp Outlet

Much better than the TOP GREENER equivalent. Doesn''t buzz under load, and the screwless faceplate has a nice look. 11 people found this helpful Helpful Report

---

Top reviews from other countries

Translate all reviews to EnglishCarlos Agosto 4.0 out of 5 starsVerified Purchase Se ajusta completamente a mis necesidades. Reviewed in Mexico on November 4, 2021

Se ajustó Perfecto a mis accesorios bticino, incluso hasta el color. Cargador usb C me funciona Perfecto la carga rápida en iPhone, en 30 minutos se carga el 50%. Lo único que no me agradó mucho es que no tiene usb de 3A, es lo único que le falta para ser Perfecto. La...See moreSe ajustó Perfecto a mis accesorios bticino, incluso hasta el color. Cargador usb C me funciona Perfecto la carga rápida en iPhone, en 30 minutos se carga el 50%. Lo único que no me agradó mucho es que no tiene usb de 3A, es lo único que le falta para ser Perfecto. La calidad del producto es bastante buena. Se ajustó Perfecto a mis accesorios bticino, incluso hasta el color.

Cargador usb C me funciona Perfecto la carga rápida en iPhone, en 30 minutos se carga el 50%.

Lo único que no me agradó mucho es que no tiene usb de 3A, es lo único que le falta para ser Perfecto.

La calidad del producto es bastante buena. One person found this helpful Report Translate review to EnglishLuigy JL 4.0 out of 5 starsVerified Purchase Buen producto, muy funcional y tiene carga rápida Reviewed in Mexico on February 21, 2021

Funciona adecuadamente, tiene sus ventajas en relación a otros y son qué te permite tener dos contactos en ves de uno, como son la mayoría de contactos qué tienen errada usb, un plus y motivo por el cual lo adquirí fue por la entrada tipo c, así que es muy buena opción ya...See moreFunciona adecuadamente, tiene sus ventajas en relación a otros y son qué te permite tener dos contactos en ves de uno, como son la mayoría de contactos qué tienen errada usb, un plus y motivo por el cual lo adquirí fue por la entrada tipo c, así que es muy buena opción ya qué tienes dos contactos normales, dos entradas usb, y una entrada usb tipo c. Lo que me agrado más es que la carga rápida de la entrada tipo c funciona adecuadamente, como si usaras el cargador, adicionalmente una de las entradas usb también tiene carga rápida y otra carga normal. Tiene pues un precio adecuado en relación a otros qué solo manejan entra usb, un contacto y carga lenta. Por lo que, el. Plus es todas las entradas y la carga rápida. Lo único que no me agrado es el chasis qué es un poco corto pero de comprende por el precio y todo lo que ofrece. Funciona adecuadamente, tiene sus ventajas en relación a otros y son qué te permite tener dos contactos en ves de uno, como son la mayoría de contactos qué tienen errada usb, un plus y motivo por el cual lo adquirí fue por la entrada tipo c, así que es muy buena opción ya qué tienes dos contactos normales, dos entradas usb, y una entrada usb tipo c. Lo que me agrado más es que la carga rápida de la entrada tipo c funciona adecuadamente, como si usaras el cargador, adicionalmente una de las entradas usb también tiene carga rápida y otra carga normal. Tiene pues un precio adecuado en relación a otros qué solo manejan entra usb, un contacto y carga lenta. Por lo que, el. Plus es todas las entradas y la carga rápida. Lo único que no me agrado es el chasis qué es un poco corto pero de comprende por el precio y todo lo que ofrece. Report Translate review to EnglishBorja 5.0 out of 5 starsVerified Purchase Perfectos! La mejor opción calidad/precio Reviewed in Mexico on February 4, 2021

Funcionan a la perfección. Conecté iPad al usb-c y iPhone al usb-a de carga rápida, y el Apple Watch al usb-a de carga normal, y todos cargaron al mismo tiempo perfectamente. Fácil instalación sin necesidad de conectar la tierra. El precio es perfecto y llegó 2 días antes...See moreFuncionan a la perfección. Conecté iPad al usb-c y iPhone al usb-a de carga rápida, y el Apple Watch al usb-a de carga normal, y todos cargaron al mismo tiempo perfectamente. Fácil instalación sin necesidad de conectar la tierra. El precio es perfecto y llegó 2 días antes de lo que especificaba, sin pagar nada más por ser importación. La mejor opción para este tipo de enchufes a un súper precio! Funcionan a la perfección. Conecté iPad al usb-c y iPhone al usb-a de carga rápida, y el Apple Watch al usb-a de carga normal, y todos cargaron al mismo tiempo perfectamente. Fácil instalación sin necesidad de conectar la tierra. El precio es perfecto y llegó 2 días antes de lo que especificaba, sin pagar nada más por ser importación. La mejor opción para este tipo de enchufes a un súper precio! Report Translate review to EnglishCiclomantis 5.0 out of 5 starsVerified Purchase Recomendable Reviewed in Mexico on May 9, 2021 Muy buen accesorio para cargar equipos con solo tener el cable adecuado a la tomas que trae en contacto, esta a un precio muy razonable, Muy buen accesorio para cargar equipos con solo tener el cable adecuado a la tomas que trae en contacto, esta a un precio muy razonable, Report Translate review to Englishlouppi 5.0 out of 5 starsVerified Purchase Fini les chargeurs qui occupent les prises. Reviewed in Canada on September 11, 2021 Je l''utilise avec des fils à 90° , fini l''encombrement des prises . Je l''utilise avec des fils à 90° , fini l''encombrement des prises . Report Translate review to English

---
