ELEGRP 30W 6.0 Amp 3-Port USB Wall Outlet, 20 Amp Receptacle with USB Type C Type A Ports, USB Charger for iPhone, iPad, Samsung, LG, HTC and Android Devices, UL Listed, with Wall Plate, 2 Pack, White
$13.30
| Size: |
| Color: |
PRODUCTS DESCRIPTION
At the office, home or school, USB type C has arrivedYou’ve probably noticed something strange about many of the latest phones, tablets and laptops: The familiar rectangular Type A USB ports are gone, replaced by smaller oblong connectors. USB type C has taken over at work, at home and at school. While many iPhone and iPad models stick with Apple’s proprietary Lightning connector, USB type C is now part and parcel of most laptops, phones and tablets made today. Even the latest MacBooks and Chromebooks are part of the movement to USB type C. What Is USB Type C? USB type C is a relatively new connector for delivering data and power to and from computing devices. Because the USB type C plug is symmetrical, it can be inserted either way, eliminating the frustrations of earlier USB ports and putting it on a par with Apple’s reversible Lightning plug. What's more, USB type C is closely linked to several powerful new technologies, including Thunderbolt and USB Power Delivery, that can change how we think about our gear and working in the office, on the road, or at home. Unique 3 USB Ports
Multiple Protection Safer ChargingBuilt-in circuit protection system protects your device from various hazards

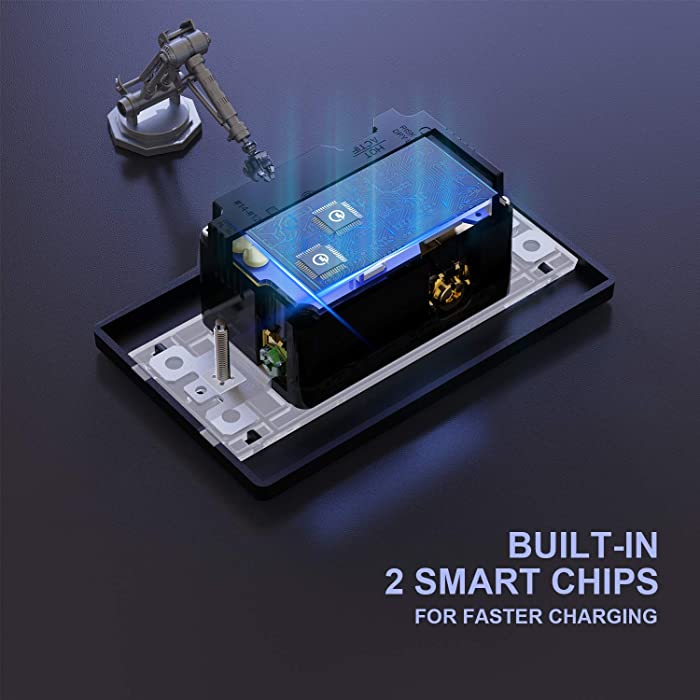

6.0 Amps USB OutputThis USB outlet offers a smarter way to charge than traditional AC power adapters. With a collective output of 6.0 amps, this USB outlet can fully charge your device at the fastest speed. Elegant Matte FinishTexture matte surface looks best with today's decors. Tough thermoplastic housing shrugs off impacts and scratches. Comes with a set of the matte screwless wall plate. Smart SystemBuilt in 2 smart chips recognize the individual device‘s charging protocols and requirements to optimize charging of your electronic devices for fast and efficient charging of phones, tablets, gaming devices, e-readers and a host of other electronic devices. Universal Compatibility

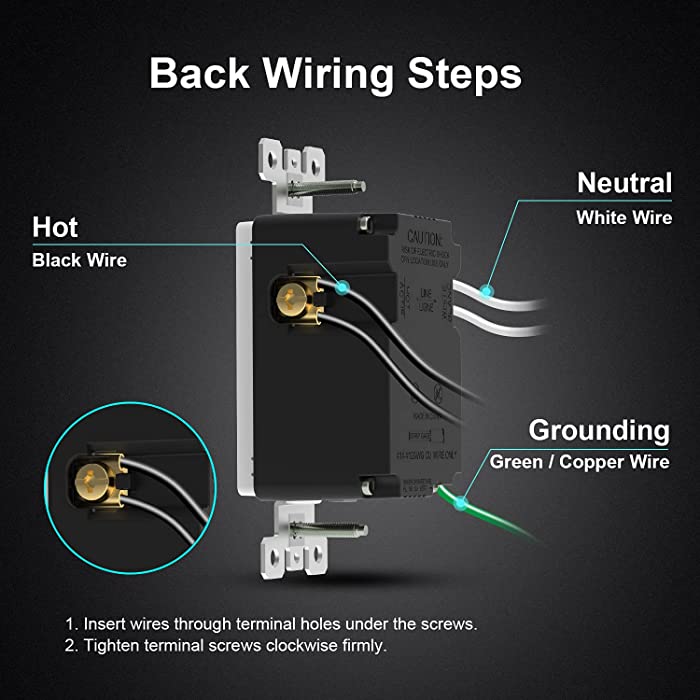

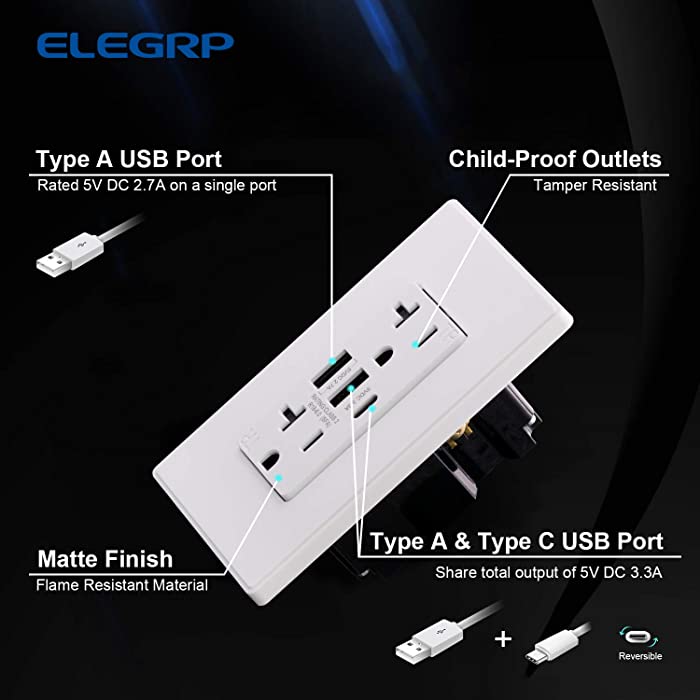

PRODUCT SPECIFICATION Receptacle Rating: 20A, 125V Receptacle Type: NEMA 5-20R USB Rating: Type A1: 5VDC 2.7A Type A2+Type C: 5VDC 3.3A Wire Guage: #14 - #12 AWG Wiring Type: Back Wire Only Operating Temperature: -4 to 104℉ (-20℃ to 40℃) Product Size: 4.17x1.69x1.69" (106x43x43mm) Remark: Screwless wall plate is included
Product information
Additional InformationImportant information
Wattage :30 watts
Bulb Voltage :125 volts Brief content visible, double tap to read full content.Full content visible, double tap to read brief content.VideosPage 1 of 1Start OverPage 1 of 1
Related posts
Customer QuestionsThere was a problem completing your request. Please try again later. Don''t see the answer you''re looking for? Post failedError posting question. Please try again.Q: Can I use a standard face plate? Using in a bathroom mirror so I need to use a standard mi… A: Dear customer, yes, you can. Please don''t worry about the size of the cutout, because all … Seller Q: Any problem using these in a bedroom where all outlets are on a gfci breaker? What about i… A: Dear customer, we suggest you to use this USB outlet downstream from a GFCI outlet. Thank… Seller Q: Are these recp. Ul listed. ? A: Dear Customer, all our products are UL listed and 100% inspected before shipment. The UL f… Seller Q: Can you plug a heater into it? A: Like all electrical applicances, that would depend on the amps of the heater and of the ci… See all 27 answered questions Free delivery for eligible ordersSponsored
Reviews with images
See more
Top reviews from the United StatesCDBVerified Purchase Only single connects Reviewed in the United States on September 10, 2021Size: 15 Amps OutletColor: Black These would be great except they only have one hot and one neutral connection so you cannot put these someplace where you have additional outlets run on the same line (series of outlets) which is almost always the case in American homes. This can only be installed at the... See more These would be great except they only have one hot and one neutral connection so you cannot put these someplace where you have additional outlets run on the same line (series of outlets) which is almost always the case in American homes. This can only be installed at the end of such a series which then only provides GFSI protection for that outlet not the rest of those on the same circuit. I was astonished when I found out they only had connectors for single incoming lines and no safe way to have other circuits run off them. I had to return these but my kitchen, like everyone''s has one than one outlet on a electric line. 22 people found this helpful BGWENGGVerified Purchase Great charging but had one safty issue Reviewed in the United States on June 12, 2021Size: 15 Amps OutletColor: WhiteThe issue I have is this: If you want to be able to use the actual AC outlets - you have to use a standard plug. It can’t be one of the power cables that have a big AC/dc converter on the end. If you need to plug one of those in, then you won’t be able to use the charging ports. For example, I had an Amazon Echo Show I wanted to keep in this area. I can plug it in and it will work just fine, but then I can’t use the charging ports. 6 people found this helpful D. JohnsonVerified Purchase Works well, but really bad coil whine Reviewed in the United States on December 14, 2021Size: 15 Amps OutletColor: Brown This outlet does provide enough USB power to charge a couple of devices. But it has an annoying issue... it has a pretty loud coil whine going on whenever something is plugged in and charging. It''s a high-pitch squeal that can get on your nerves pretty quickly. It happens... See more This outlet does provide enough USB power to charge a couple of devices. But it has an annoying issue... it has a pretty loud coil whine going on whenever something is plugged in and charging. It''s a high-pitch squeal that can get on your nerves pretty quickly. It happens with both of the 2 outlets that I got, so it seems more like a design issue rather than a manufacturing defect. It''s rather disappointing that they couldn''t make this silent. 4 people found this helpful Florida CustomerVerified Purchase ELEGRP 30W 6.0 Amp 3-Port USB Wall Outlet, 20 Amp Receptacle with USB Ports is as advertised Reviewed in the United States on June 11, 2021Size: 20 Amps OutletColor: White The ELEGRP 30W 6.0 Amp 3-Port USB Wall Outlet, 20 Amp Receptacle with USB Type C Type A Ports, USB Charger for iPhone, iPad, Samsung, LG, HTC and Android Devices is as advertised and perfect for my needs. The outlet has built in safety shutters that block foreign objects... See more The ELEGRP 30W 6.0 Amp 3-Port USB Wall Outlet, 20 Amp Receptacle with USB Type C Type A Ports, USB Charger for iPhone, iPad, Samsung, LG, HTC and Android Devices is as advertised and perfect for my needs. The outlet has built in safety shutters that block foreign objects from being inserted into the receptacle, as many new outlets have. This may make it harder to insert a plug the first few times. Make sure both plug prongs contact the shutters simultaneously. Do this a few times and the shutters loosen up. The USB outlets provide high speed charging. I tested this by plugging my Samsung phone directly into the USB outlet and timed it until fully charged. Then when my phone battery was down to the same level as the previous test, I plugged my Samsung Fast Charger into the regular electrical outlet and the time until fully charged was the same. There is probably a more scientific method of testing, but this was close enough for me. All-in-all I am very pleased with the outlets. 3 people found this helpful EarlAVerified Purchase Dangerous design with screws on side Reviewed in the United States on January 4, 2022Size: 15 Amps OutletColor: White We installed a pair of these in a duplex electrical box. Installing the standard duplex cover plate required moving the two outlets a tad closer. Sparks and circuit breaker blown! The wiring connection uses one screw on either side. Since there is only one screw... See more We installed a pair of these in a duplex electrical box. Installing the standard duplex cover plate required moving the two outlets a tad closer. Sparks and circuit breaker blown! The wiring connection uses one screw on either side. Since there is only one screw per side, series wiring adds a bit of thickness to the connection. This causes the screws to project out further. The screw on the right side of one comes into contact with the screw on the left side of the other. I could slap a bit of electric tape on each screw but doing so is neither code nor safe. These will be returned and replaced with receptacles which use wire insertion in the rear of the outlet. That too may be a challenge since these receptacles are quite bulky. On checking, I see that another reviewer complained of similar problem with clearance on metal box. (Plastic boxes are almost impossible to find these days.) Top reviews from other countriesTranslate all reviews to EnglishJosé octavio jimenez Verified Purchase Los puertos USB no llegan ni a 10w por puerto USB Reviewed in Mexico on January 22, 2022 Los puertos USB no llegan ni a 10w por puerto USB a (usando solo uno a la vez) El puerto USB C solo da El puerto USB A (cualquiera de los dos y solo usando uno a la vez) solo da 5v 800-900 mA max 4.5w (cuando deberia dar 2700mA. Cualquiera de los puertos USB A solo da una...See moreLos puertos USB no llegan ni a 10w por puerto USB a (usando solo uno a la vez) El puerto USB C solo da El puerto USB A (cualquiera de los dos y solo usando uno a la vez) solo da 5v 800-900 mA max 4.5w (cuando deberia dar 2700mA. Cualquiera de los puertos USB A solo da una tercera parte de lo prometido el puerto USB C (usandolo igual solo) solo da 5v 1300 mA 6.5 w, cuando este deberia dar 3300mA (Mucho menos de la mitad de lo prometido, casi la tercera parte) Realmente no vale la pena, cargan muy lento, y para eso, mejor otras opciones mas baratas. Los puertos USB no llegan ni a 10w por puerto USB a (usando solo uno a la vez) El puerto USB C solo daEl puerto USB A (cualquiera de los dos y solo usando uno a la vez) solo da 5v 800-900 mA max 4.5w (cuando deberia dar 2700mA. Cualquiera de los puertos USB A solo da una tercera parte de lo prometido el puerto USB C (usandolo igual solo) solo da 5v 1300 mA 6.5 w, cuando este deberia dar 3300mA (Mucho menos de la mitad de lo prometido, casi la tercera parte) Realmente no vale la pena, cargan muy lento, y para eso, mejor otras opciones mas baratas. One person found this helpful Translate review to EnglishFelix Verified Purchase Great quality, versatile plug Reviewed in Canada on December 4, 2021
This product is very solidly built. The writing on the front of the plug is crisp and the faceplate is nice and opaque. It does not look cheap like other brands. The finish is a beautiful matte bright white. They are cUL listed and thus approved for use in Canada. There is...See moreThis product is very solidly built. The writing on the front of the plug is crisp and the faceplate is nice and opaque. It does not look cheap like other brands. The finish is a beautiful matte bright white. They are cUL listed and thus approved for use in Canada. There is a stamp on the back I installed these on my backsplash in the kitchen and had to add a box extender. The device is fills out an entire 2.5" single gang box. One thing to note is that if you are using metal boxes and 12 gauge wire (as you should in Ontario when using 20 Amp plugs) you should cover the sides of the plug with electrical tape as otherwise the terminal screws may touch the box and cause arcing. In my case my boxes are on an exterior wall and are plastic. Also the box extender I am using fits this device very snugly and is plastic and could serve the purpose of insulating it against the metal box in other use cases. The box extender I am using is an Arlington BE1. The charging function is solid as well. It does deliver the full 30W when using multiple devices. The left USB-A Port charges my iPad Pro nice and quick. The middle USB-A and the USB-C port share 3.3A. If just using the USB-C port I am able to draw the 3.3A from that port. Note that it only supports 5V, so you will not be charging devices asking for more volts with any more than the 5V this plug promises. That is fine for some devices, which will simply charge slower (such as the Nintendo Switch) but it will not work with laptops. It does not support USB-C PD or QuickCharge as far as I can tell, so it''s just regular USB charging. All in all, it does exactly what it says on the box and I am very pleased with this purchase!
This product is very solidly built. The writing on the front of the plug is crisp and the faceplate is nice and opaque. It does not look cheap like other brands. The finish is a beautiful matte bright white. They are cUL listed and thus approved for use in Canada. There is a stamp on the back I installed these on my backsplash in the kitchen and had to add a box extender. The device is fills out an entire 2.5" single gang box. One thing to note is that if you are using metal boxes and 12 gauge wire (as you should in Ontario when using 20 Amp plugs) you should cover the sides of the plug with electrical tape as otherwise the terminal screws may touch the box and cause arcing. In my case my boxes are on an exterior wall and are plastic. Also the box extender I am using fits this device very snugly and is plastic and could serve the purpose of insulating it against the metal box in other use cases. The box extender I am using is an Arlington BE1. The charging function is solid as well. It does deliver the full 30W when using multiple devices. The left USB-A Port charges my iPad Pro nice and quick. The middle USB-A and the USB-C port share 3.3A. If just using the USB-C port I am able to draw the 3.3A from that port. Note that it only supports 5V, so you will not be charging devices asking for more volts with any more than the 5V this plug promises. That is fine for some devices, which will simply charge slower (such as the Nintendo Switch) but it will not work with laptops. It does not support USB-C PD or QuickCharge as far as I can tell, so it''s just regular USB charging. All in all, it does exactly what it says on the box and I am very pleased with this purchase! One person found this helpful Guillermo Quiroz Martinez Verified Purchase Excelente contacto Reviewed in Mexico on October 30, 2021 El contacto múltiple es de muy buena calidad y sus contactos USB son de carga rápida! Se acabó el problema de estar buscando los cargadores del celular! El contacto múltiple es de muy buena calidad y sus contactos USB son de carga rápida! Se acabó el problema de estar buscando los cargadores del celular! One person found this helpful Translate review to EnglishGokulakrishnan Verified Purchase No the truth description Reviewed in Canada on August 15, 2021 On the description says 30w 6amp Didn’t mention anything anywhere on the catalogue or box or on the outlet it’s not 30W On the description says 30w 6amp Didn’t mention anything anywhere on the catalogue or box or on the outlet it’s not 30W 2 people found this helpful antonio villa Verified Purchase ELEGRP 30W 6.0 Amp 3 puertos USB Reviewed in Mexico on September 15, 2021 son excelentes de buena calidad aparte super eficientes son excelentes de buena calidad aparte super eficientes One person found this helpful Translate review to English Brief content visible, double tap to read full content.Full content visible, double tap to read brief content. Brief content visible, double tap to read full content.Full content visible, double tap to read brief content. Brief content visible, double tap to read full content.Full content visible, double tap to read brief content. You are herea-link-normal" href="/gp/site-directory">Department Tools & Home Improvement Electrical Outlets & Accessories Standard Outlets |
