Description
This model can be amplify for HF radio.

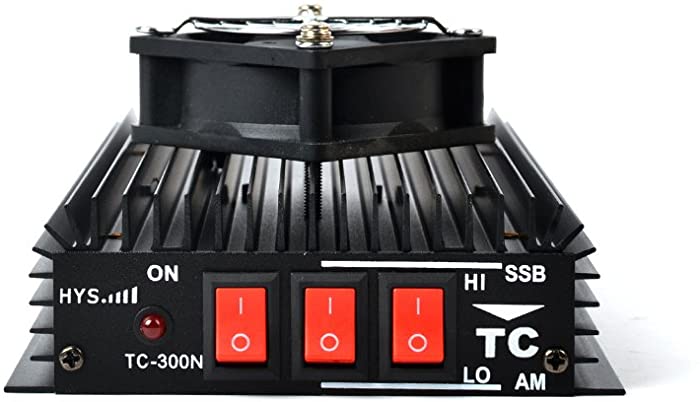

1.Turn on/off switch
2.Auto receive/transmit switch
3.Electrode reversal protect
Specifications
Frequency range:HF
Operate voltage:12-14 Vcc
Input current/POWER:14-20 A
Input power:3-5 W
Input power SSB:2-10 W
FM Output power:PEP Max 150 W(Input 10W)(Note: Note:Normal the output power is 70-100W)
AM Output power:PEP Max 150 W(Input 10W) (Note:Normal the output power is 70-100W)
Output power SSB:300 W(Input 10W) PEP Max 250W (Input 5W ) PEP Max(Note:Normal the output power is 120-250w)
Working mode:FM- AM-CW-SSB
Note:if you will test the max PE power to FM/AM 150W or SSB 300w,you can try use input 10w from FM/AM /SSB radio but please don’t use too long time, the operate will cause damage to power transistor, more serious will cause the Amp to burn out.
Blown fuse:2x12 A
Dimension:109x225x35 mm
Net weight:750 g.
Product Description

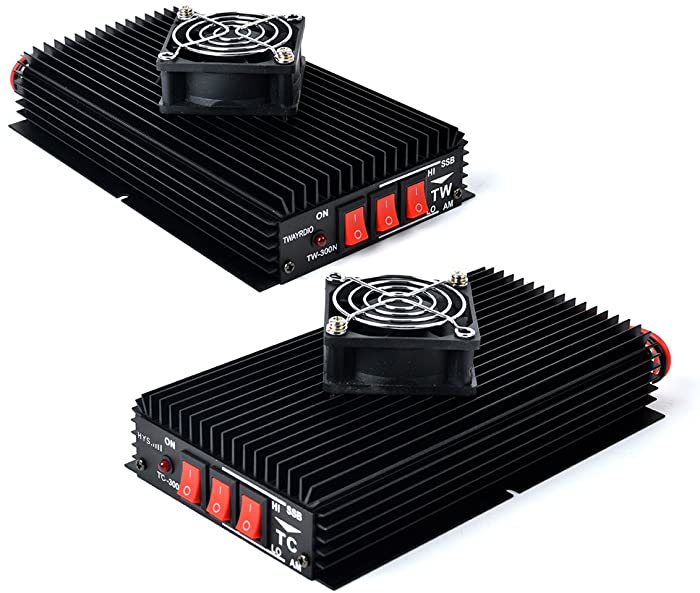

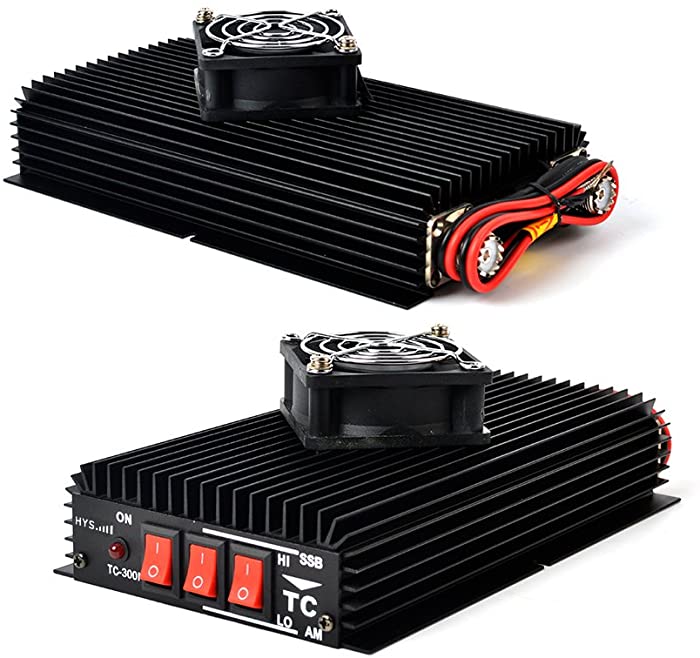

Compact high power all mode Amp with
automatic TX/Rx switch and On/Off switch. Electronic switch.
Inversion polarity protection.
It will decrease the amp'' life time and also if the antenna can not endure the output watt, which will damage the amp.
Packing Incudes:1*TC-300N Amp Features & details Features - Amp best effect Frequency range:20-30mhz.( Works on 15 meter, 12 meter and 10 meter)
- Amp bellow 20Mhz the output power will be lower and vswr will be higher than 20-30Mhz.Connection of antenna is very important for low frequency product , the effect of the antenna will seriously affect Amp effect.

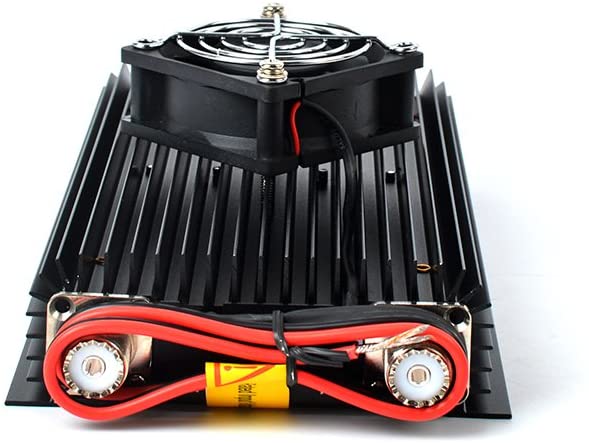

- MINI FUN FUNICATION: "High Rotaion Spead" Fan is designed for a better heat dissipation funication.
- Operate voltage 13.8Vcc.Input current/POWER:14-20 A. Input power(FM/AM/CW):3-5 W Input power (SSB):2-10 W.Compact high power all mode amplifier with automatic TX/Rx switch and On/Off switch.
- The amp different model ,such as FM,AM,SSB,CW.Please learn about how to operate when you want to purcahse.Or ask for us and give professional advice.
