Description
ELECTRICAL SPECIFICATIONS
The length of the beam: 36.6inches/93cm
The length of the element: 41inches/105cm (the longest one)
Weight: 1.4lbs/640g
Frequency range: VHF 136-174MHz & UHF 400-470MHz
Gain: 9.5 dBi / 11.5 dBi
Max power: 100W
Impedance: 50Ω
VSWR: less than 1.5
Rated Wind Velocity: 60 m/s

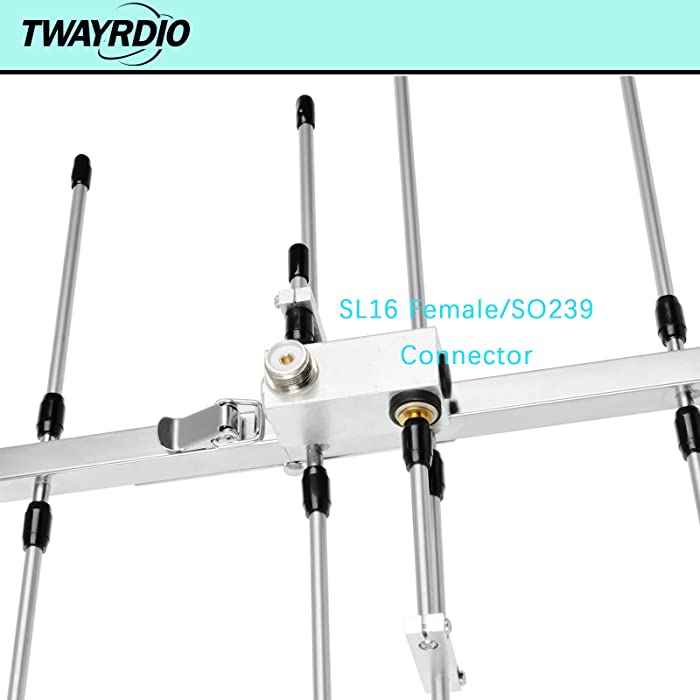

Connector: SL16 Female/SO239

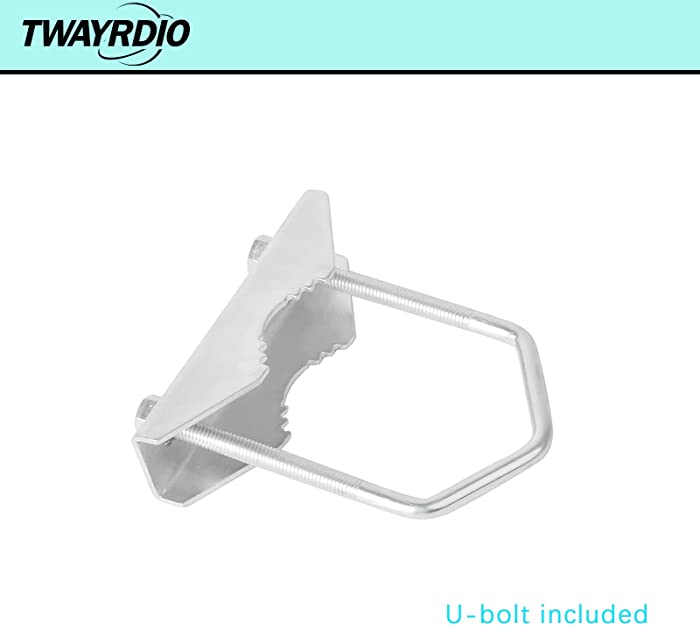

The diameter of mounting mast: Ø1.2～Ø2.3 inches
Product information | Package Dimensions |
17.99 x 3.78 x 2.99 inches | | Item Weight |
1.62 pounds | | Manufacturer |
TWAYRDIO | | ASIN |
B09H79QWQJ | | Item model number |
TWAYRDIO YG08UV Foldable |
| Best Sellers Rank |
#999 in Two-Way Radio Antennas
| | Date First Available |
September 27, 2021 | Product Warranty: For warranty information about this product, please click here |
