XRDS-RF 50W PL259 UHF Male Plug RF Dummy Load, 50 Ohm

XRDS-RF 50 ohm 50W PL259 UHF male plug rf dummy load for your need

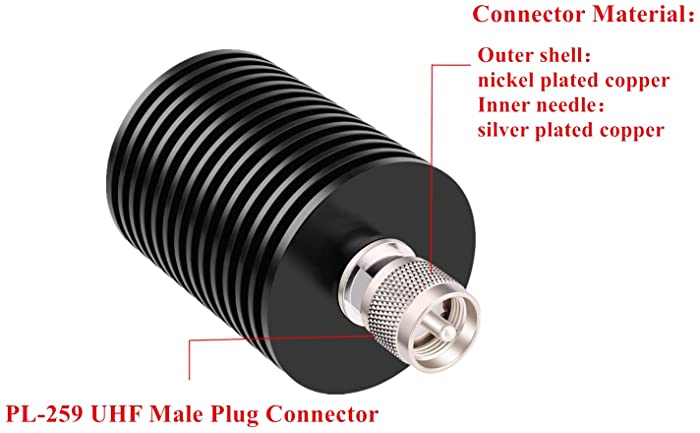

Adapter Plug Material

• Outer shell：nickel plated copper
• Inner needle：silver plated copper

Product Specification

	10W PL259 Male Plug Dummy Load	100W PL259 Male Plug Dummy Load	50W N Male Plug Dummy Load	UHF Lightning Arrestor	25FT CB Coax Cable
Power	10W	100W	50W
Connector Type	UHF Male	UHF Male	N Type Male	UHF Female to UHF Female	PL259 Male to PL259 Male

Package Include:

1 x 50W PL259 UHF male plug rf dummy load

1 x Plastic dust cap

The construction of XRDS-RF PL259 UHF male dummy load is solid, it’s compact, and it does what it’s supposed to do.

Features & details

Features

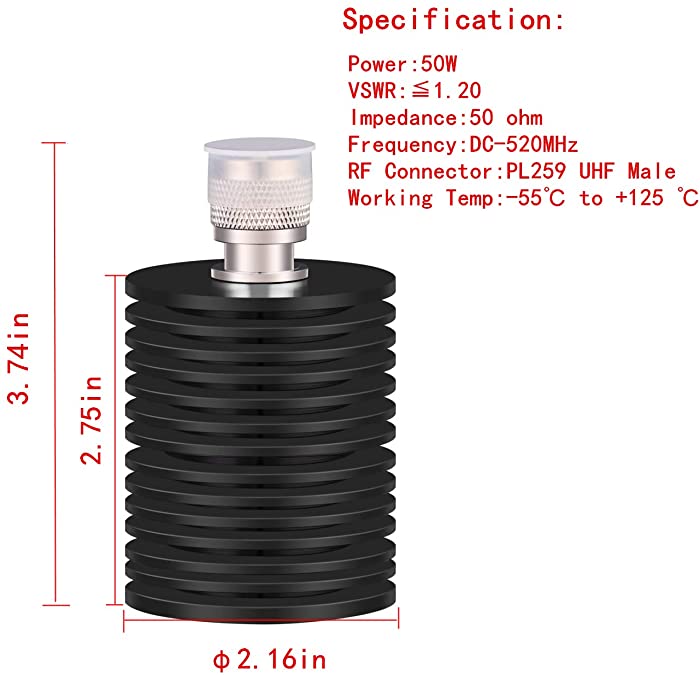

• 50W PL259 UHF Male Plug DC-520 MHz dummy load
• Frequency Range: DC to 520MHz. VSWR:≤ 1.2
• Connector Type: PL259 Male. Impedance: 50ohm
• Adapter Material: The outer shell is nickel plated copper, and the inner needle is silver plated copper
• Working Temp：-55 ~ +125 ℃

Product information

Videos

1. For related products



   0:18

   10Watt UHF Dummy Load,DC to 3GHz,50 Ohm

   Shenzhen Becen Communication Technology Co., Ltd

Share this video with friends

Customer Questions

There was a problem completing your request. Please try again later.

Don''t see the answer you''re looking for?

Post failed

Q: The description doesn''t specify if the watts are average watts or pep watts. Anyone know w…

A: I don''t know what the peak envelope power handling capability is but I presume they mean d…

Bobby | 2 months ago

Q: When using this dummy load to test cb radio 27mhz what is the swr at 27mhz?

A: I did not check it specifically on the CB frequencies but at 144Mhz and 440Mhz it was less…

Daniel P. | 2 months ago

Q: Can this be used oh hf ham radio

A: Yes, this is rather good dummy load and I have one that I recently purchased. I do not li…

Al | 8 months ago

You might also like

1. BECEN PL259 Male Plug Dummy Load... 60 reviews $46.88
2. Siglent Technologies SSA3021X-TG... 36 reviews $1,395.00
3. XRDS-RF 50W N Male Plug RF Dummy... 6 reviews $26.99
4. XRDS-RF 100W PL259 UHF Male Plug... 8 reviews $51.99
5. MWRF Source PL259 Male UHF RF Du... 89 reviews $19.49
6. Jackery Solar Generator 1000, Ex... 1554 reviews $1,649.00
7. NanoVna SAA-2N VNA Antenna Analy... 40 reviews $152.99

Reviews with images

---

Top reviews from the United States

Hi Flyer1.0 out of 5 starsVerified Purchase Test Before Using Reviewed in the United States on October 12, 2021 CAUTION: I tested this unit before using it on my Ham station. It tested OPEN, with a ohm check and an antenna analyzer. Opening the unit, The screw used to ground the resistor was loose. After tightening it and reassembling and testing, it worked fine. ALWAYS test... See more CAUTION: I tested this unit before using it on my Ham station. It tested OPEN, with a ohm check and an antenna analyzer. Opening the unit, The screw used to ground the resistor was loose. After tightening it and reassembling and testing, it worked fine. ALWAYS test electrical devices before use. 7 people found this helpful Helpful Report Geekus5.0 out of 5 starsVerified Purchase Good device/Good Price. Reviewed in the United States on February 24, 2022 For about $30, including sales tax, I got what I wanted and needed. I wanted a 50W load with a quality UHF male connector (captivated center pin) on it that I could use with a low VSWR and a fairly flat performance profile thru the 440MHz ham band. I expected the... See more For about $30, including sales tax, I got what I wanted and needed. I wanted a 50W load with a quality UHF male connector (captivated center pin) on it that I could use with a low VSWR and a fairly flat performance profile thru the 440MHz ham band.

I expected the performance of the UHF connector to degrade somewhat above 300MHz, as that is the frequency where one should really switch to using an N style connector, but the VSWR as measured on my NanoVNA was no worse than 1.03:1 anywhere from 1.8 thru 450 MHz. Of course the resistive part of the overall impedance load would vary between 48 and 54 Ohms with the complex part of the presented load varying slightly capacitive (at most couple of hundred pF) to slightly inductive (max of 1.5 nH), but this never prevented the overall return loss at ANY frequency across that range was never any worse than 25-30dB. I couldn''t ask for more.

It was really cool to see the LCD readout on my NanoVNA simply trace a tiny spiral of circles around the 50 Ohm point in the dead center of the Smith Chart display across this swept frequency range. This is a real home run, IMHO.

One cannot expect a DC Ohmmeter to measure 50 Ohms nor a single RF frequency to read that same number with "absolutely no reactance contribution at all" at a single, selected RF point frequency. Only an RF sweep across the operating range of interest with VSWR, return loss, et cetera readings will tell one whether this will be a good quality load for one''s radio or other RF emanating device. This load meets that criteria for how I will be using it.

If you plan to operate at frequencies above the 440 Ham Band, say at 902 or 1296 MHz, or above...buy a load that has an N-connector input. That way you won''t get the impedance bump from a UHF connector''s physical design at those higher frequencies. An N connector input dummy load should give you a 1.5:1 VSWR (15dB return loss...a decent 50 Ohm match) up to 3 GHz. You should also use nothing but N connector males and females on all of your other RF connections...with NO inter-series adapters. As such, since I only use UHF connectors, I wouldn''t try to use this load above 500 MHz.

For my planned use, though, it''s a real winner at a very good price-point. One person found this helpful Helpful Report Steven C Genoway5.0 out of 5 starsVerified Purchase HUGE Reviewed in the United States on February 22, 2021 Well I have a 5 watt, and a 20 watt, when I got this 50 watt, well it looks more like a 200 watt. Again, HUGE!!!! One person found this helpful Helpful Report Michael4.0 out of 5 starsVerified Purchase Seems to work just fine. Reviewed in the United States on October 19, 2021 I have no way of testing this dummy load, but it appears to be made well and serve it’s purpose. Like most things on Amazon these days, it’s overpriced for what it is. Helpful Report Amazon Customer5.0 out of 5 starsVerified Purchase 50 watt dummy load Reviewed in the United States on March 15, 2021 Unit appears to perform as expected when handling 50 watt 2 meter signal. One person found this helpful Helpful Report Daniel5.0 out of 5 starsVerified Purchase works great Reviewed in the United States on March 8, 2022 Received fast! Helpful Report Jill5.0 out of 5 starsVerified Purchase 50 watt Dummy Load Reviewed in the United States on January 30, 2022 Does what it’s supposed to. Helpful Report joseph silveira 25.0 out of 5 starsVerified Purchase Works great Reviewed in the United States on March 17, 2022 Like the easy way it fits Helpful Report

---
